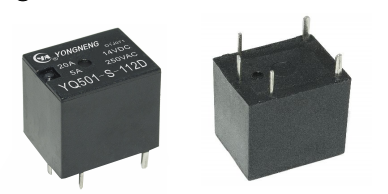

| CONTACT DATA | |
| Model | YQ501 |
| Contact Arrangement |
1A 、1B 、1C |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) |
20A 14VDC，5A 250VAC |
| Max. Switching Current | 20A |
| Max. Switching Voltage | 30VDC /250VAC |
| Max. Switching Power | 280W 1250VA |
| Mechanical endurance | 1x107 OPS |
| Electrical endurance | 1x105 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 10ms Max. |
| Release Time ( without diode ) | 5ms Max. |
| Insulation Resistance | 1000MΩ Min.( 500VDC ) |
| Dielectric Strength | Between Open Contacts : 500VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 500VAC, 50/60Hz 1 min | |
| Vibration resistance | Functional: 10~55Hz 双振幅 1.5mm ( DA ) |
| Destructive: 10~55Hz 双振幅 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+125℃ ( No condensation) |
| Unit Weight | Approx. 6.0g |
| COIL DATA (at 23℃) | ||||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 5 | 72.0 | 69 | of rated voltage130 % |
of rated voltage70 % |
of rated voltage10 % |
approx.0.36 |
| 6 | 60.0 | 100 | ||||
| 9 | 40.0 | 225 | ||||
| 12 | 30.0 | 400 | ||||
| 24 | 15.0 | 1600 | ||||
| 5 | 120.0 | 42 | approx.0.8 |
|||
| 6 | 100.0 | 60 | ||||
| 9 | 66.7 | 135 | ||||
| 12 | 50.0 | 240 | ||||
| 24 | 25.0 | 960 | ||||
| ORDERING INFORMATION | |
| Type designation : |
YQ501 |
| Protective construction : | S-Flux proofed |
| Number of poles : | 1-1 Group |
| Coil voltage : |
5,6,9,12,24 (VDC) |
| Coil power: |
D-0.6 W ,L-0.36W |
| Contact form : |
Nil-Form C , M-Form A , B-Form B |

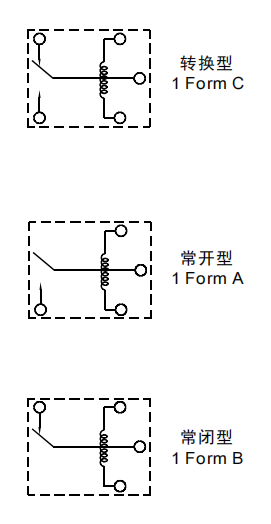

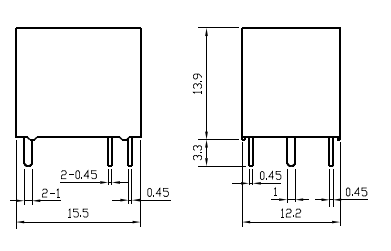

| Outline Dimensions | PCB Layout (Bottom View) | Wiring Diagram( Bottom View) |
 |
 |
 |

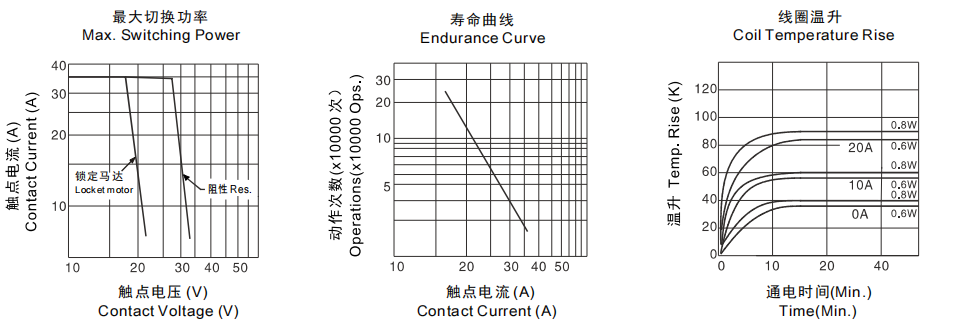

CHARACTERISTIC CURVES
