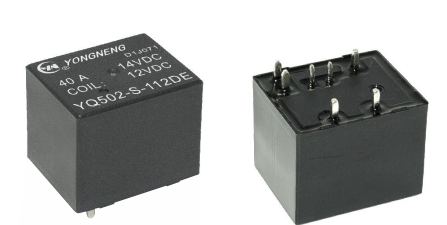

Automotive Power Relay 40A YQ502

Features:
Contact switching capability:40A.

PCB terminals

Highly shockproof and anti-impact performance

  • Automotive Power Relay  YQ502
Desciption
CONTACT DATA
Model  YQ502
Contact Arrangement

1A 、1B 、1C

Contact Resistance  50mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

40A 14VDC

Max. Switching Current  40A
Max. Switching Voltage  30VDC
Max. Switching Power 560W
Mechanical endurance 1x107  OPS
Electrical endurance  1x105  OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  6ms Max.
 Release Time ( without diode ) 3ms Max.
Insulation Resistance  1000MΩ Min.( 500VDC )
Dielectric Strength Between Open Contacts : 500VAC, 50/60Hz 1 min.
Between Coil & Contacts: 500VAC, 50/60Hz 1 min
Vibration resistance  Functional: 10~55Hz 双振幅 1.5mm ( DA )
Destructive: 10~55Hz 双振幅 1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+125℃ ( No condensation)
Unit Weight  Approx. 20.0g

COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )
Max allowable voltage
VDC (Max.)
Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
12 133.3 90 of rated voltage150 %



of rated voltage70 %




of rated voltage10 %






approx.1.6





24 66.7 360

ORDERING INFORMATION
Type designation :

YQ502

Protective construction : S-Flux proofed
Number of poles : 1-1 Group
Coil voltage :

12,24 (VDC)

Coil power:

D-1.6 W

Terminal Arrangement:

U-USA footprint , E-Europe footprint

Yoke Terminal Arrangement:

Nil-3 yoke terminals , 2-2 yoke terminals

Contact form :

Nil-Form C , M-Form A , B-Form B


OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)

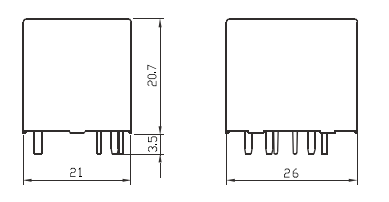

Plastic Sealed type

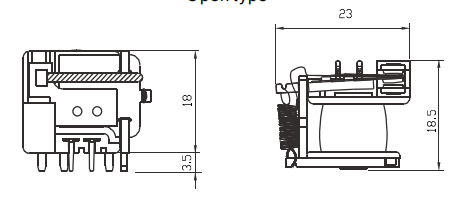

Open type

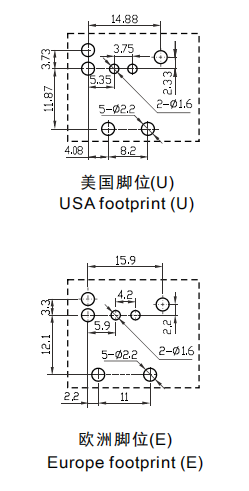

PCB Layout (Bottom View  )

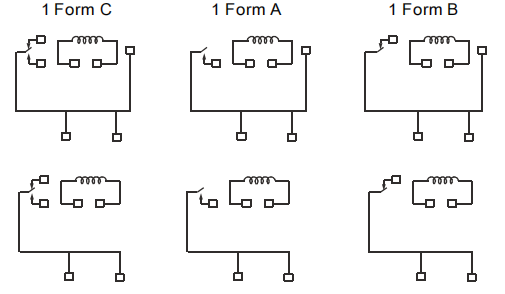

Wiring Diagram ( Bottom View)

3 yoke terminals

2 yoke terminals


Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.

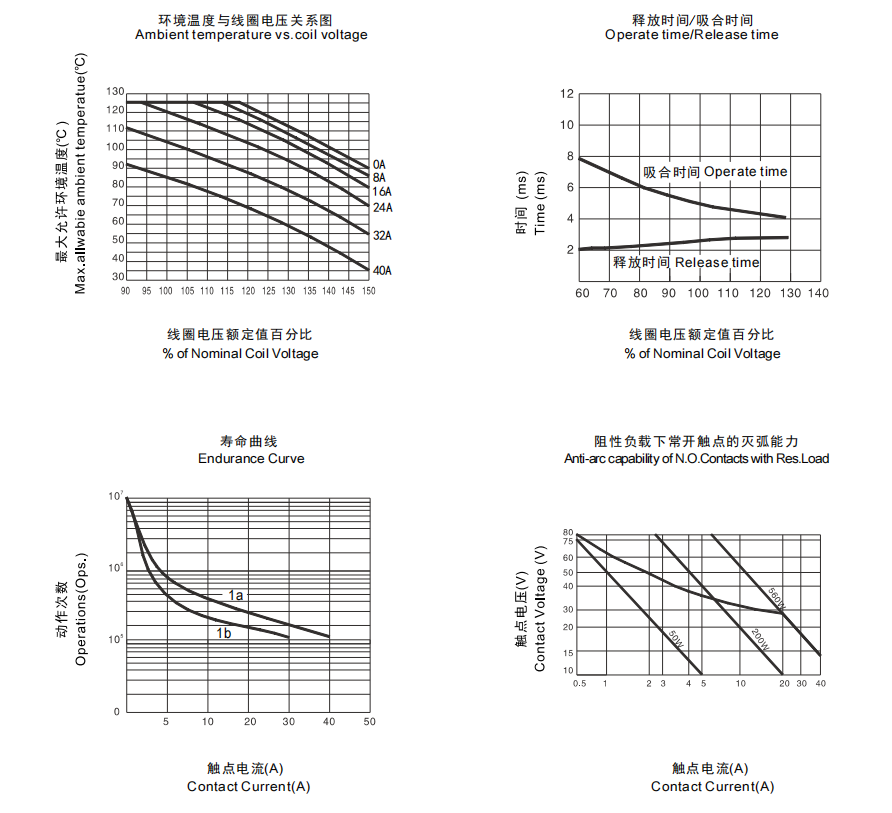

CHARACTERISTIC CURVES
