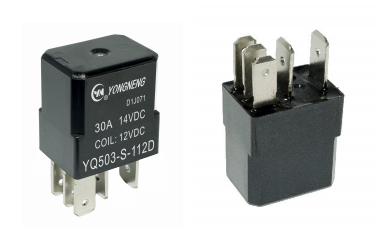

Automotive Power Relay 30A YQ503

Features:
  • Contact switching capability:30A.
  • Resistor or diode parallelled type available.
  • Highly shockproof and anti-impact performance
  • Automotive Power Relay   YQ503
Desciption
CONTACT DATA
Model  YQ503
Contact Arrangement

1A 、1C

Contact Resistance  50mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

30A 14VDC

Max. Switching Current  30A
Max. Switching Voltage  30VDC
Max. Switching Power 420W
Mechanical endurance 1x107  OPS
Electrical endurance  1x105  OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  10ms Max.
 Release Time ( without diode ) 5ms Max.
Insulation Resistance  100MΩ Min.( 500VDC )
Dielectric Strength Between Open Contacts : 750VAC, 50/60Hz 1 min.
Between Coil & Contacts: 750VAC, 50/60Hz 1 min
Vibration resistance  Functional: 10~55Hz 双振幅 1.5mm ( DA )
Destructive: 10~55Hz 双振幅 1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+125℃ ( No condensation)
Unit Weight  Approx. 18g

COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )
    Max allowable voltage
VDC (Max.)
Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
12 133.3 90.0     of rated voltage150 %






of rated voltage70 %







of rated voltage10 %












approx.1.6/1.8













24 66.7 360.0
12 150.9 90.0 680.0 79.5
24 75.6 360.0 2700 317.5
12 109.1 110.0     of rated voltage150 %

of rated voltage70 %

of rated voltage10 %



approx.1.3/1.4



24 53.9 445.0
12 121.2 110.0 1000 99.0

ORDERING INFORMATION
Type designation :

YQ503

Protective construction : S-Flux proofed
Number of poles : 1-1 Group
Coil voltage :

12,24 (VDC)

Coil power:

D-1.6 W/1.8W; L-1.3W/1.4W

Contact form :

Nil-Form C , M-Form A

Accessory Form

Nil-Without accessory, D-With diode, R-With resistor


OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)

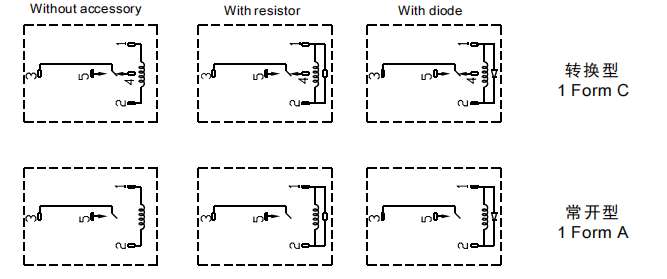

Outline Dimensions PCB Layout (Bottom View) Wiring Diagram( Bottom View)

Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
