AUTOMOTIVE RELAY 60A YQ506

Features:
  • High switching capability:60A.
  • Resistor or diode parallelled type available.
  • Extended temp. ranges up to 125℃
  • AUTOMOTIVE RELAY  YQ506
  • AUTOMOTIVE RELAY  YQ506
Desciption
CONTACT DATA
Model  YQ506
Contact Arrangement

1A ,1B,1C

Contact Resistance  50mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

60A 14VDC;40A 14VDC

Max. Switching Current  60A
Max. Switching Voltage  30VDC
Max. Switching Power

840W;560W

Mechanical endurance 1x107  OPS
Electrical endurance  1x105  OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  10ms Max.
 Release Time ( without diode ) 5ms Max.
Insulation Resistance  100MΩ Min.( 500VDC )
Dielectric Strength Between Open Contacts : 500VAC, 50/60Hz 1 min.
Between Coil & Contacts: 500VAC, 50/60Hz 1 min
Vibration resistance  Functional: 10~55Hz  1.5mm ( DA )
Destructive: 10~55Hz  1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+125℃ ( No condensation)
Unit Weight  Approx. 36g

COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )

Shunt resistance(Ω )

Equivalent resistance(Ω )

Max allowable voltage
VDC (Max.)
Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
12 133.3 90
of rated voltage150 %







of rated voltage70 %







of rated voltage10 %







approx.

1.6/1.8







24 75.0 320
12 150.9 90 680 79.5
24 83.9 320 2700 286

ORDERING INFORMATION
Type designation :

YQ506

Protective construction : S-Flux proofed
Number of poles : 1-1 Group
Coil voltage :

12,24 (VDC)

Coil power:

D-1.6/1.8W

Version:

Ni- Without Bracket & QC Terminal,F- Plastic Bracket & QC
Terminal ,F1-Iron Bracket &QC Terminal,
P-Without Bracket &PCB Terminal

Contact form :

Nil-Form C,M-Form A, B-Form B

Accessory Form :

Nil-Without accessory, D-With diode. R-With resistor

Special mode :

2-With terminal 87a for Form A

Nil-Without this terminal for Form A

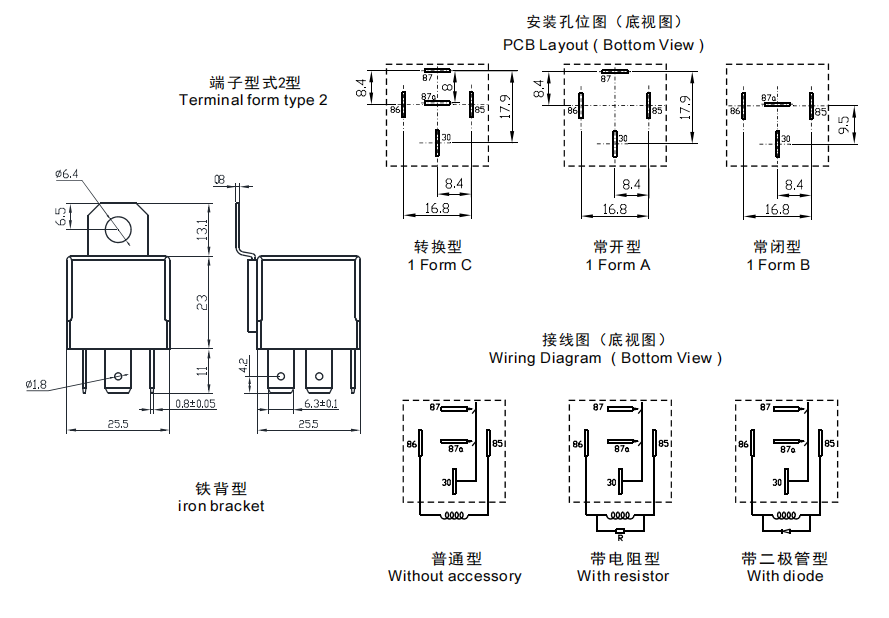

OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)

Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.

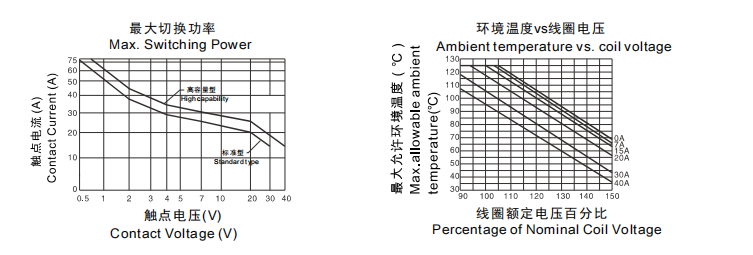

CHARACTERISTIC CURVES
