AUTOMOTIVE RELAY 80A YQ507

Features:

  • High contact switching capability:80A.
  • Extended temp. ranges up to 125
  • Resistor or diode parallelled type available.
  • AUTOMOTIVE RELAY YQ507
  • AUTOMOTIVE RELAY YQ507
Desciption
CONTACT DATA
Model  YQ507
Contact Arrangement

1A ,1C

Contact Resistance  50mΩ Max.
Contact Material  Silver Alloy
Contact Rating ( Res.Load )

80A 14VDC

Max. Switching Current  80A
Max. Switching Voltage  50VDC
Max. Switching Power

1120W

Mechanical endurance 1x107  OPS
Electrical endurance  1x105  OPS

CHARACTERISTICS
Operate Time ( at nomi.volt. )  10ms Max.
 Release Time ( without diode ) 7ms Max.
Insulation Resistance  100MΩ Min.( 500VDC )
Dielectric Strength Between Open Contacts : 500VAC, 50/60Hz 1 min.
Between Coil & Contacts: 500VAC, 50/60Hz 1 min
Vibration resistance  Functional: 10~55Hz  1.5mm ( DA )
Destructive: 10~55Hz  1.5mm ( DA )
Shock resistance Functional: 10G Min.
Destructive: 100G Min.
Ambient Temperature -40℃~+125℃ ( No condensation)
Unit Weight

conventional type: Approx. 38g,PCB: Approx. 37g


COIL DATA (at 23℃)
Rated voltage
(VDC)
Rated current
±10%(mA)
Coil resistance
±10%(Ω )

Shunt resistance(Ω )

Equivalent resistance(Ω )

Max allowable voltage
VDC (Max.)
Operate voltage
VDC (Max.)
Release voltage
VDC (Min.)
Rated coil power
(W)
12 133.5 90
of rated voltage150 %







of rated voltage70 %







of rated voltage10 %







approx.

1.6/1.8







24 67.0 360
12 150.9 90 680 79.5
24 75.6 360 2700 317.5
12 167.0 72     of rated voltage150 %


of rated voltage70 %


of rated voltage10 %

approx.
2.0/2.2

24 83.5 288
12 184.6 72 680 65
24 92.3 288 2700 260

ORDERING INFORMATION
Type designation :

YQ507

Protective construction : S-Flux proofed
Number of poles : 1-1 Group
Coil voltage :

12,24 (VDC)

Coil power:

D-1.6W/1.8W; H-2.0W/2.2W

Version:

Ni- Without Bracket & QC Terminal,F- Plastic Bracket & QC
Terminal ,F1-Iron Bracket &QC Terminal,
P-Without Bracket &PCB Terminal

Contact form :

Nil-Form C,M-Form A

Accessory Form :

Nil-Without accessory, D-With diode. R-With resistor

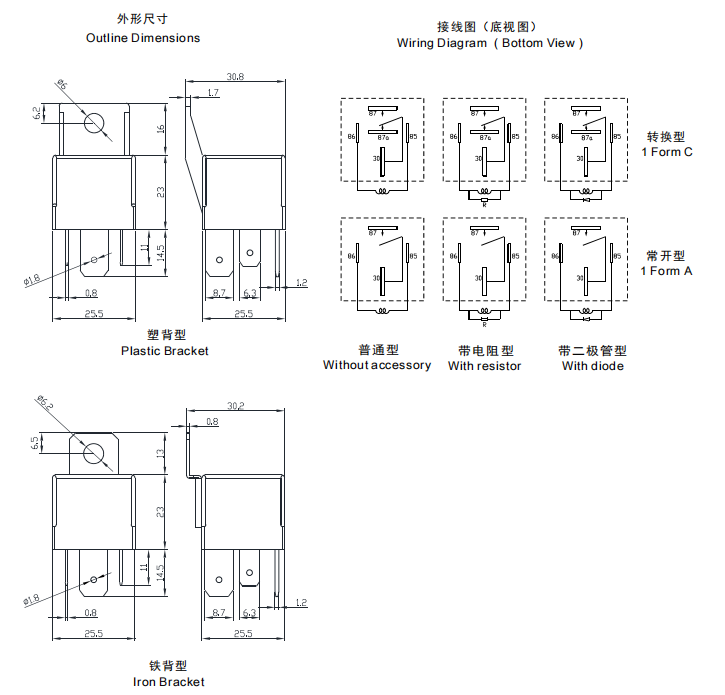

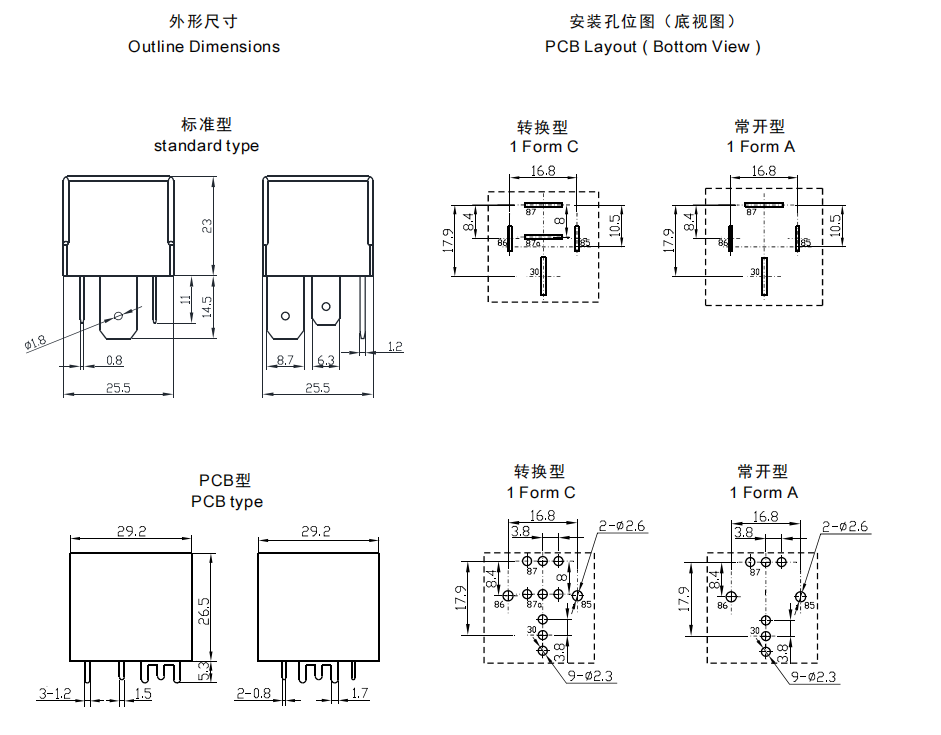

OUTLINE DIMENSIONS,WIRING DIAGRAM AND PCB LAYOUT (Unit: mm)

Remark :
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;(1 ~5 )mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
