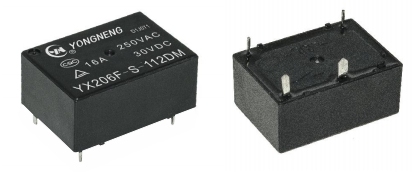

| CONTACT DATA | |
| Model | YX206F |
| Contact Arrangement | 1A |
| Contact Resistance | 100mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) |
16A 250VAC/30VDC |
| Max. Switching Current | 16A |
| Max. Switching Voltage |
277VAC/30VDC |
| Max. Switching Power |
4000VA/480W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 15ms Max. |
| Release Time ( without diode ) | 8ms Max. |
| Insulation Resistance | 1000MΩ Min.( 500VDC ) |
| Dielectric Strength | Between Open Contacts : 1000VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 2500VAC, 50/60Hz 1 min | |
| Vibration resistance | Functional: 10~55Hz 1.5mm ( DA ) |
| Destructive: 10~55Hz 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+85℃ ( No condensation) |
| Unit Weight | Approx. 8.8g |
| COIL DATA (at 23℃) | ||||||
| Rated voltage (VDC) |
Rated current ±10%(mA) |
Coil resistance ±10%(Ω ) |
Max allowable voltage VDC (Max.) |
Operate voltage VDC (Max.) |
Release voltage VDC (Min.) |
Rated coil power (W) |
| 3 | 67 | 45 | of rated voltage150 % | of rated voltage75 % | of rated voltage5 % | approx.0.2 |
| 5 | 40.0 | 125 | ||||
| 6 | 33.3 | 180 | ||||
| 9 | 22.2 | 405 | ||||
| 12 | 16.7 | 720 | ||||
| 18 | 11.1 | 1620 | ||||
| 24 | 8.3 | 2880 | ||||
| 48 | 7.1 | 6770 | ||||
| ORDERING INFORMATION | |
| Type designation : | YX206F |
| Protective construction : | S-Flux proofed |
| Number of poles : | 1-1 Group |
| Coil voltage : | 03,05,06,09,12,18,24,48 (VDC) |
|
Coil power : |
D-0.2 W |
| Contact form : | M-Form A |
| Outline Dimensions | PCB Layout (Bottom View) | Wiring Diagram( Bottom View) |
 |
 |
 |
