| CONTACT DATA | |
| Type |

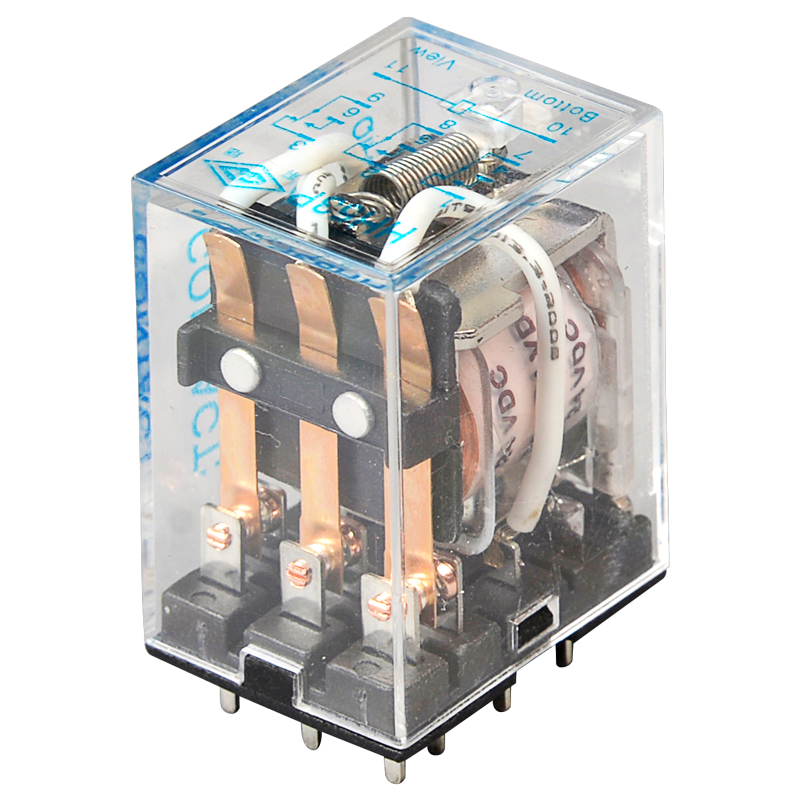

General Purpose Power Relay |
| Model No. |
YX234/MY |
| Contact Arrangement |
3A,3C |
| Contact Resistance |
100 mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) | 5A 250VAC
/28VDC |
| Max. Switching Current | 7A |
| Max. Switching Voltage | 250VAC/28VDC |
| Max. Switching Power | 1250VA/140W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
| Operate Time ( at nomi.volt. ) | 20ms Max. |
| Release Time ( without diode ) | 15ms Max. |
| Insulation Resistance | 500MΩ Min.( 500VDC ) |
| Dielectric Strength |
Between Open Contacts : 1,000VAC, 50/60Hz 1 min |
|
Between Open Contacts : 1,000VAC, 50/60Hz 1 min |
|
| Ambient Temperature | -40℃~+85℃ ( No condensation) |
| Rated Coil Power | 0.9W/1.0W,1.3VA |
