| CONTACT DATA | |
| Model |

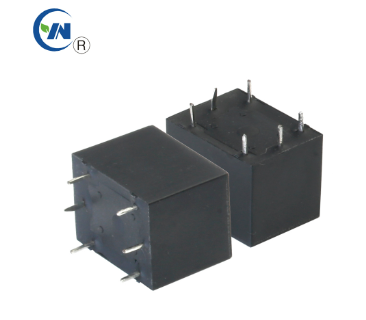

YC605 |
| Contact Arrangement |
1A 、1C |
| Contact Resistance |
100 mΩ Max. |
| Contact Material | Silver Alloy |
| Contact Rating ( Res.Load ) | 10A 250VAC
/30VDC |
| Max. Switching Current | 15A |
| Max. Switching Voltage | 277VAC/30VDC |
| Max. Switching Power | 25000VA/300W |
| Mechanical endurance | 1x107 次 OPS |
| Electrical endurance | 1x105 次 OPS |
| CHARACTERISTICS | |
|
Set Time ( at nomi.volt.) |
5ms Max. |
| Release Time ( without diode ) | 5ms Max. |
| Insulation Resistance | 100MΩ Min.( 500VDC ) |
| Dielectric Strength | Between Open Contacts : 1,000VAC, 50/60Hz 1 min. |
| Between Coil & Contacts: 1,500VAC, 50/60Hz 1 min | |
| Vibration resistance | Functional: 10~55Hz 1.5mm ( DA ) |
| Destructive: 10~55Hz 1.5mm ( DA ) | |
| Shock resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40℃~+85℃ ( No condensation) |
| Unit Weight | Approx. 63g |
| ORDERING INFORMATION | |
| Type designation : |
YC605 |
| Number of poles : | 1-1 Group |
| Coil voltage : |
03,05,06,09,12,15,18,24,36,48 (VDC) |
|
Protective construction : |
S-Flux proofed , SH-Sealed type |
| Contact form : |
Nil-Form C , M-Form A , B-Form B |
|
Coil type: |
L1- Single coil 0.36W; L2- Dual coil 0.6W. |
Remark ：
1 Unmarked dimensional tolerance .
≤1mm: ±0 2mm ;（1 ~5 ）mm: ±0 3mm ; ≥5mm: ±0 4mm
2 . The tolerance of PCB layout is always: ±0.1mm.
3.Extended terminal dimension is dimension before soldering.
